How do you raise a cap?

With difficulty! There should be a word for fitting rafters to to make a windmill cap roof..... Well, if it's good enough for barns, it's good enough for windmills; so I'll call it raising. Anyway, that is the stage we reached today. We have trial fitted the ribs in place, using a temporary pattern instead of the actual finial (we'll leave that challenge until we assemble the cap for real on-site). This was a tricky procedure, especially for the first few ribs, but the more we added, the easier it became. By the end of the day, we had all the tenoned ribs in place - that leaves us with the tapered ones to fit in-between.

Wow, it's starting to look like a windmill
Other items from the previous few days:

The braces for the truck wheels have been finished and fitted;

Two of the four new truck wheel braces

and we have made a start on the storm hatch and neck block

Starting the storm hatch; the weather studs fitted to the weather beam

The old neck block (supports the bearing for the windshaft), doesn't look too bad from this angle


From beneath, doesn't look quite so good!
Starting to make a new neck block

Thursday, 8 November 2012

Sunshine, and some more framing

Hoorah, dry weather. With the basic cap frame set up and lowered back onto the cap circle, attention has now turned to the additional frame members. The two diagonal braces between the weather beam and shears had somehow escaped the decay which affected the other beams, so we have reused these and fitted them into place. We have also reused the central block between these two braces, and made two new 'closers' which fill the gaps either side of this.

Diagonal braces fitted

Presumably, these braces originally helped spread the load from the weather beam to the cap circle, as well as stiffening the frame to resist thrust from the sails.

The cap is kept in position laterally by cast iron 'truck wheels' which rotate against the inside of the curb. Four of these were hung off diagonal struts running between the outside of the shears and the cap circle. We are having to remake these, as the originals had, you guessed it, decayed.

Making one of the new truck wheel supports (shown here upside down); lapped dovetail will fit into cap circle

Wednesday, 7 November 2012

Cap framing in the rain


Having chosen to build the cap outside, we are having to work in (brief) windows of fine weather. The sprattle and tail beam are now morticed in, so the basic cap frame is together.


The sprattle and tail beam in place




Closer view; with wedging space on the sprattle

Oh, it's raining again. What a change.































At least we've got the hang of arranging the tarpaulin now, so we don't have an olympic sized swimming pool to drain off every morning.

Sunday, 4 November 2012

Heavy cap timbers

As promised, a further update on the cap construction....

Having taken delivery of some rather hefty sections of oak, we are now in a position to start building up the main cap structure. First up, the two large beams which run front to back in the cap, the 'shears'. Here we see one of the shears in position, being cleaned up prior to being notched over the cap circle. Large timbers call for large planes!

Shear being cleaned up

With both shears cleaned up and notched into place, next came the transverse beams. The next photo is looking from the front of the cap towards the rear. So, we have, from front to back, the weather beam, sprattle beam and tail beam.


The weather beam and tail beam will support the front and rear ends, respectively, of the windshaft. The sprattle beam is effectively in the centre of the mill and will locate and support the top end of the main upright shaft.

The next two shots show some detail of how these beams are located in the shears.

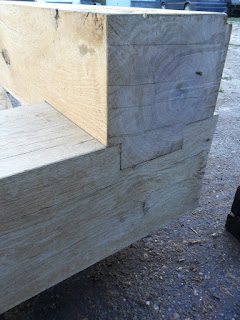

Dovetail joint between weather beam and shear

Tenons at ends of weather beam and sprattle
The tenons on the sprattle (upside down in this shot) are cut to allow for wedging of the beam into position. This gives some scope for adjustment, so the upright shaft can run true. In contrast, the tail beam will be a direct fit. So, next job, morticing..........
